UP - Ultra Air Press
Advanced air press with automation, robotics & vision systems for complex manufacturing
UP - Ultra Air Press is backordered and will ship as soon as it is back in stock.
Contact us! Our Sales Engineers are here to guide you on plastics joining and help you select the right machine. Reach out for inventory levels, pricing, or to make a purchase.

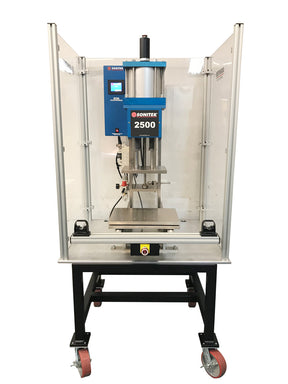

Sonitek Pneumatic Press Model # UP is an adjustable 100-1,400 lbs max force (High Ton 1500-5000 available & shown) air operated bench top press with Digital timed based controls with Force Monitoring including these standard features:
• Small and compact rugged 14”X x 21” deep Cast aluminum work base with blanchard ground top and baked on painted surfaces.
• Integrated dual start mushroom style push buttons with two- hand ; anti- tie down anti-repeat safety circuitry, Emergency stop push button with pull resetting and standard 7” bolt circle pattern on base top tapped 3/8-16 UNC for bolting or attaching lower nests/jigs onto.
• Machined frame upright thruster support assembly nickel plated for long life and equipped with adjustable gross head height in up and down direction via a hand crank system with locking.
• Four pillow block bearing assemblies and ground precision linear rails in thrusters
• 5” stroke with adjustable micro- positive stop in .001” increments
• Adjustable pressing force up to 1,400 lbs maximum.
• Air filter, regulator and air dump with lock-out/tag out feature
• Available in either Voltage (120 or 240) please specify preferred input voltage when ordering.
• Model DT system controller with HMI-PLC digital controls with graphic display and keypad with easily to set dwell timers
• Digital Parts Counter with reset
• Total life cycle counter (Non-resettable)
• Password Protection of controls to prevent unauthorized access into HMI.
• Adjustable nomenclature for optimizing process including gross head height, stroke in .001” increments, pressing forces, and stroke speeds.
• Rugged gusseted tooling mount plate for mounting upper tooling onto.
• PROUDLY MADE IN THE USA
*Specifications subject to change. Consult with Sales Engineering for accurate specs and pricing.
