Bench-Mounted Converter Wrench Fixture
Protect and secure ultrasonic converters during horn or booster installation.
Engineered for precision and repeatability, this bench-mounted fixture provides stable support for Branson®, Dukane®, and Sonitek® Quantum® converters during setup or maintenance. Designed to eliminate handling stress and improve service efficiency, it allows accurate torque application without risking converter damage.
Key Engineering Advantages
-
Converter Protection: Prevents spanner-hole elongation and thread deformation during torqueing.
-
Stable Mounting: Bolts directly to the workbench using ¼" lag screws or thru-bolts for consistent alignment.
-
Single-Tool Operation: Enables horn or booster removal using only one spanner wrench.
-
Operator Safety: Reduces dropped converters and eliminates “knuckle-busting” from manual handling.
Model Compatibility
-

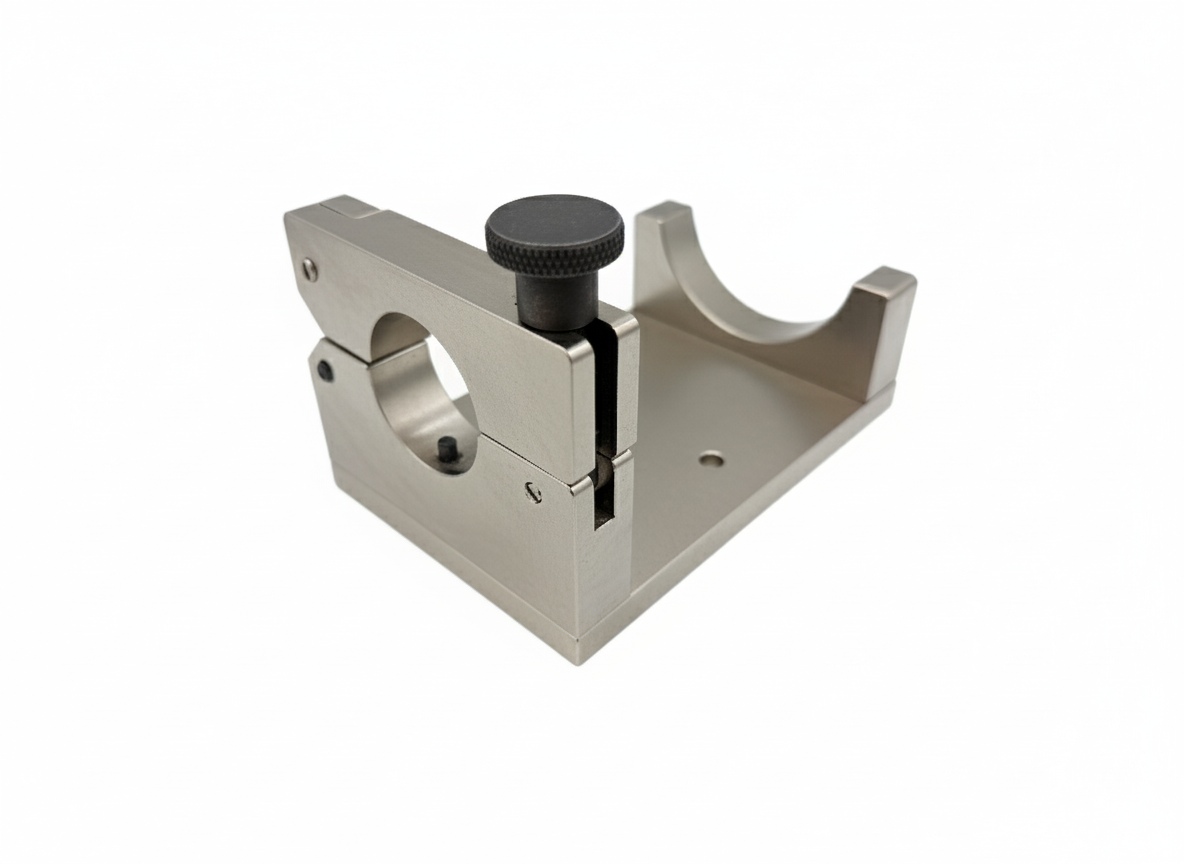

P/N 600-0100 – Branson® CJ-20, CR-20, and Sonitek® Quantum® Series converters
-

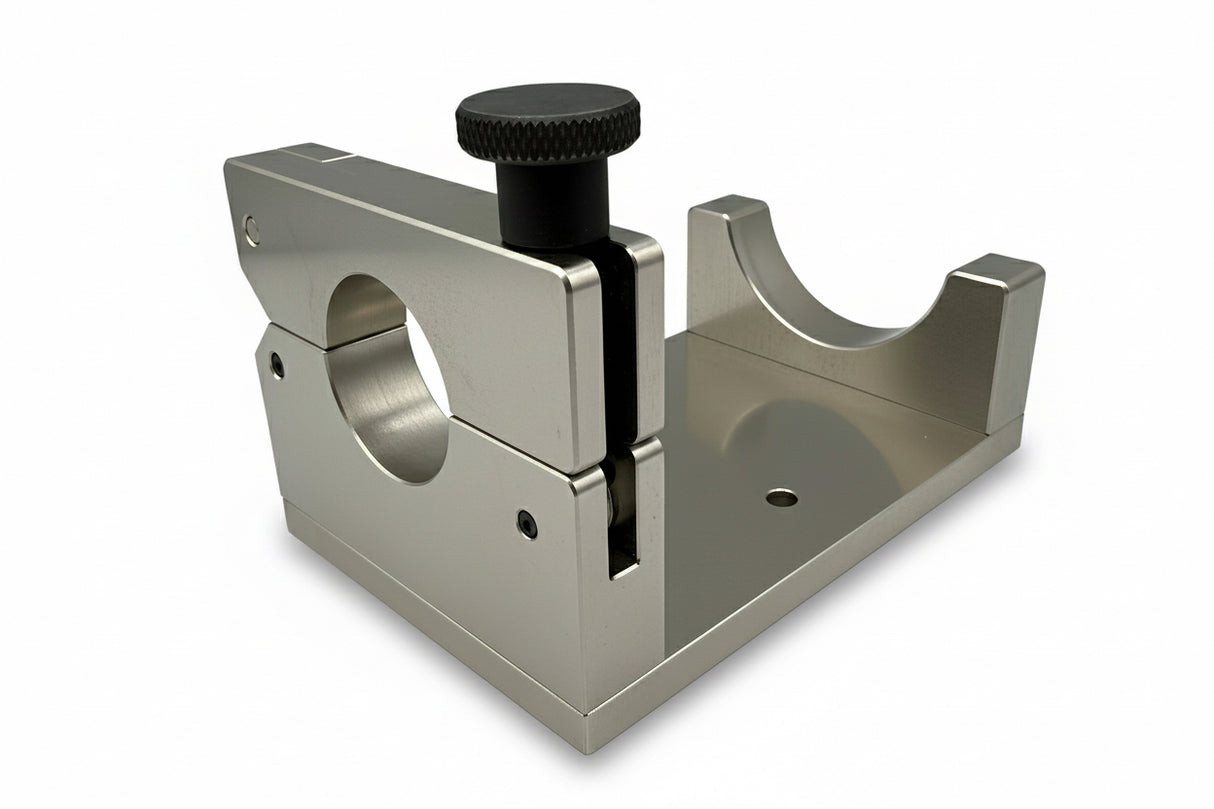

P/N 600-0101 – Branson® 400 / 800 / 900 Series (402, 502, 802, 902, 922JA) and Dukane® 20 kHz HD 110-3122 / Magnum 110-3122A
-

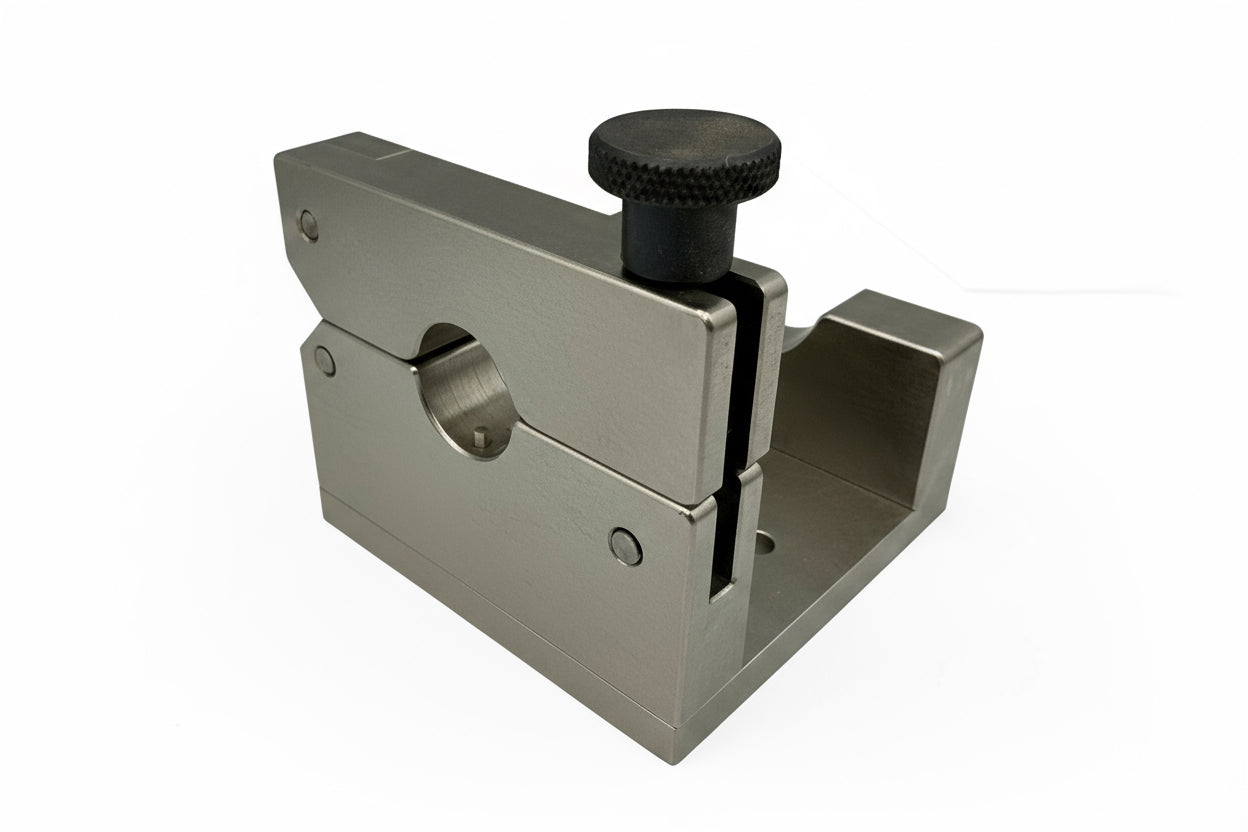

P/N 600-0102 – Branson® 40 kHz 4TJ & 4TR
-

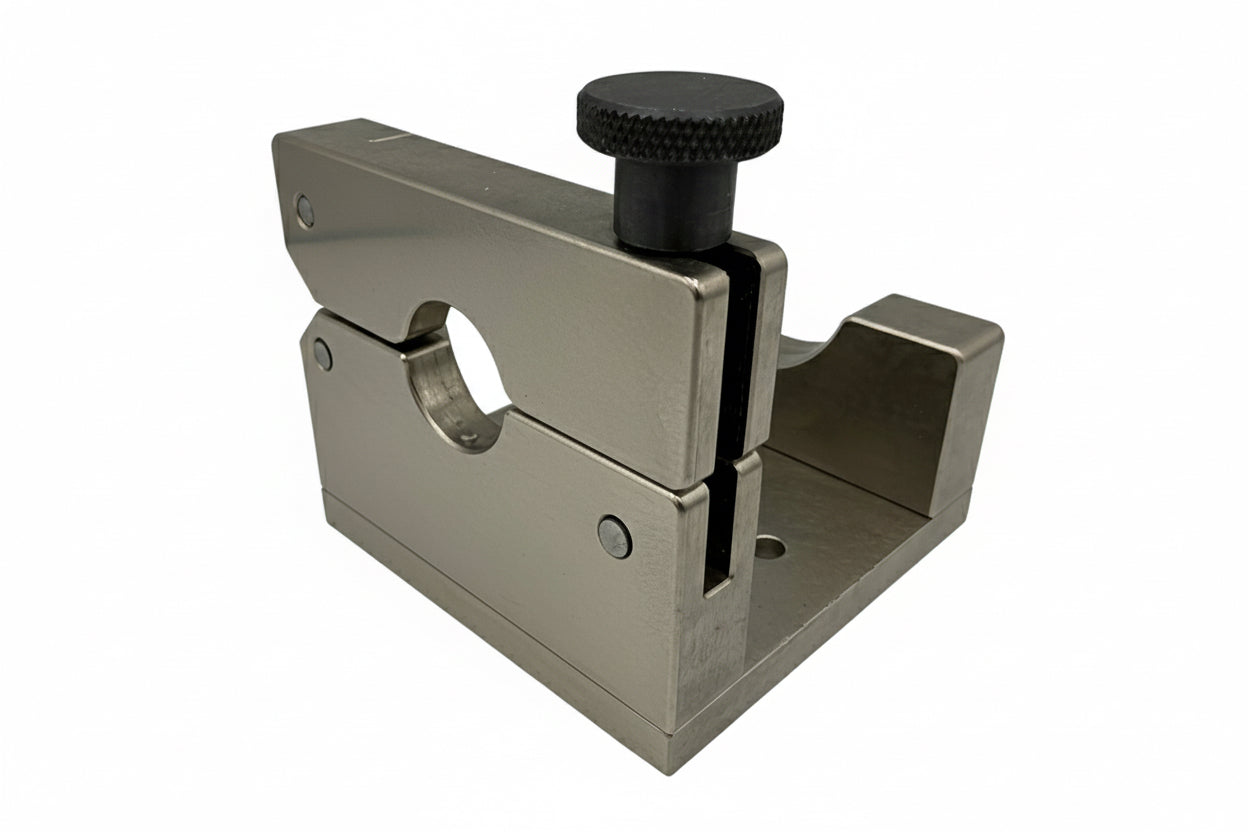

P/N 600-0103 – Dukane® 40 kHz 110-3429
All models feature precision-machined components for long-term dimensional stability and alignment accuracy.
Specifications
-
Mounting: Bench mount via ¼" lag screws or thru-bolts
-
Construction: Machined steel base and clamping assembly
-
Finish: Industrial-grade coating for corrosion resistance
-
Weight: Approx. 3 lb (varies by model)
Applications
Ideal for production, maintenance, and R&D environments performing ultrasonic horn or booster installation on Branson®, Dukane®, and Sonitek® Quantum® converters.
