CNC / Drill Press Heat Staking Kit

Versatile heat staking kit designed for CNCs, drill presses, enhancing capabilities.

$3,94500
SKU: 100-0030

Lead Time: Ships within 1 week (assembly required before shipment)

Voltage
Kit Type

Description

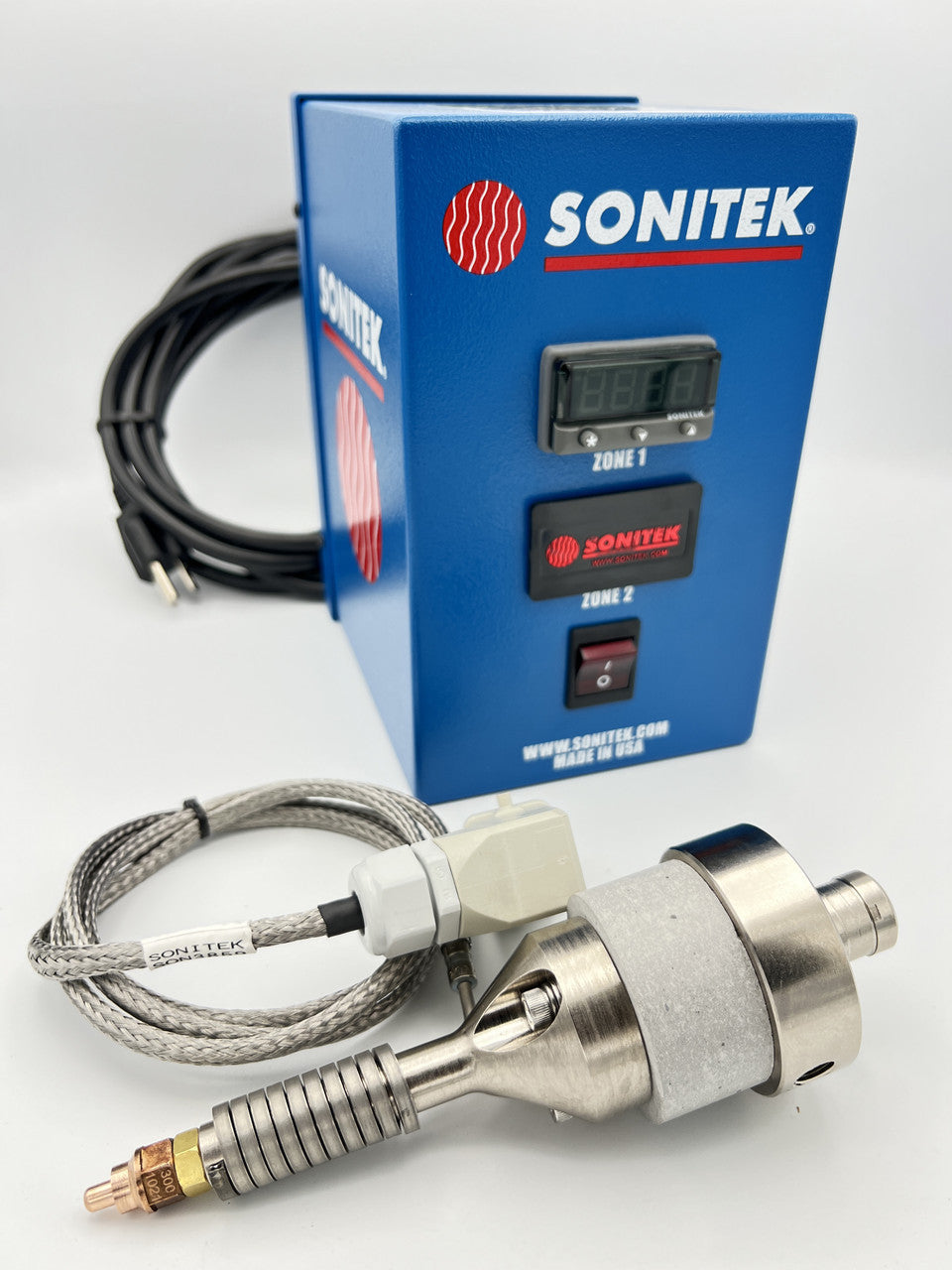

For drill-press or CNC mounting, choose the CNC-Chuck Kit: a heated probe with shank mount slips into your chuck, and it comes with the matching power supply plus a quick-connect cable.

If you don’t need chuck mounting, opt for the Complete Probe Assembly: a self-contained probe that pairs with the same power supply and quick-connect cable for fast, standalone operation.

WARNING: BEFORE USING be sure to disable power to your CNC spindle to prevent damaging the heater and/or controller!

Order tips and tip kits here: /collections/heatstaking-air-press-spare-parts?filter.p.m.custom.spare_part_type=Tips

*Tips not included in price and are sold separately

Power Supply Weight: 3.4 lb

CNC Chuck:
P/N: 100-0030 Voltage: 120v
P/N: 100-0031 Voltage: 240v
Probe Assembly Weight: 1.2 lb
Temperature Range: 0–600 °F
Example CNC Chuck:
CNC Chuck Example
PDF: CNC Chuck Drawing download (.PDF)

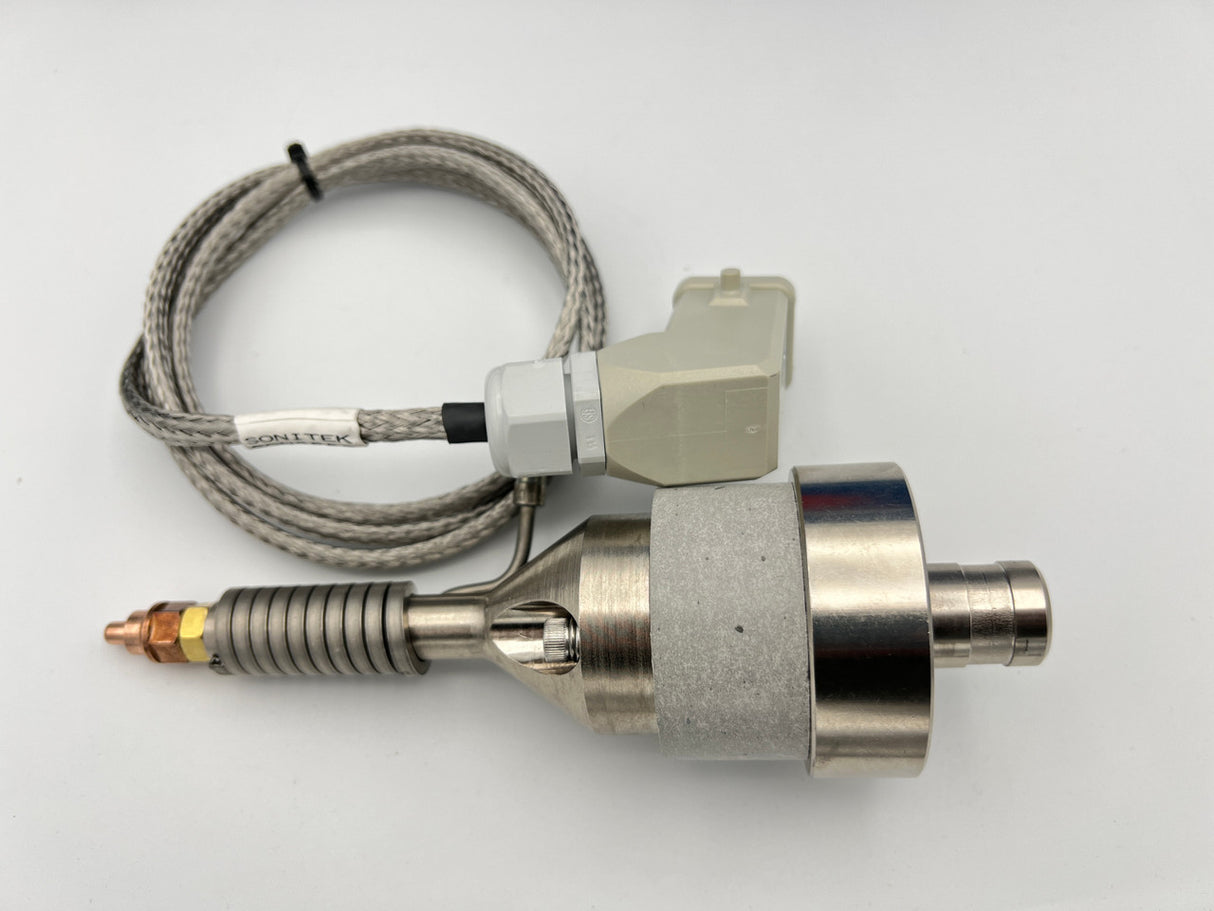

Complete Probe Assembly:
P/N: 100-0032 Voltage: 120v
P/N: 100-0033 Voltage: 240v
Probe Assembly Weight: 1.2 lb
Temperature Range: 0–600 °F
Example CPA:
Complete Probe Assembly Example

PDF: Probe Assembly Drawing download (.PDF)
